Benchtop & Floor Standing Centrifuges

Designed by analytical chemists and laboratory scientists, with over 25 years of centrifuge manufacturing behind it. Capacities run from micro to 4 litres, all with bright blue touch screen LCD displays and ω²t as standard for full run repeatability. All centrifuges and rotors carry a 2-year warranty.

• Through Flow Air System: keeps samples and motor cool in ambient models, allowing longer run times.
• Dynamic Efficiency Control refrigeration: compressor hot-gas bypass with PID valve control holds set temperature to 0.5°C, compared with 3.5°C for on/off controlled competitors, while cutting power use by 25%.
• Rotors built for chemical resistance: salt-saturation tested stainless steel bowls, CNC-machined polypropylene fixed-angle rotors, and double-anodised aircraft-grade aluminium swing-out and high-speed rotors.
• Operator features: rotor recognition, 10 acceleration and 10 deceleration rates, 99 program memory, pulse short run, speed in rpm or RCF in 1 rpm steps, sound below 60 dB.
• Safety: multi-point lid locking, emergency lid release, lid lock and imbalance detection, overspeed sensor, barrier ring, and motor overheat sensor.

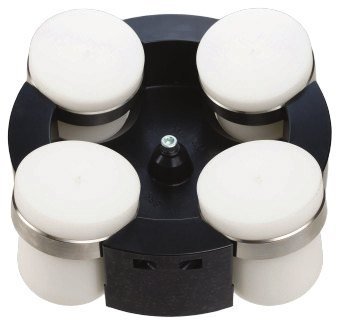

• Class 3 containment: hermetically sealable rotor buckets are available for work in Class 3 containment areas.

High-speed micro centrifuges in ambient and refrigerated versions.

• Applications: micro rotors for 0.2, 0.4, 0.5, 1.5, 2.0, 2.2 ml and PCR strips; haematocrit (PCV) rotor for capillaries and 2.0 ml tubes; fixed-angle rotors for 5 to 15 ml tubes; swing-out rotor for 2 to 5 ml tubes.

Compact general-purpose centrifuges with cytology and microplate options.

• Applications: micro rotors 0.2 to 2.2 ml and PCR; haematocrit (PCV) rotor; fixed-angle rotors for 15 and 50 ml tubes; swing-out rotor for 0.5 to 125 ml tubes; cytology rotors in 4, 8 or 12 place (double holder).
• Swing-out rotor BRK5506E: 4 x 125 ml, 4,000 rpm / 2,200 RCF, with adaptors for Monovette, Vacuette, Falcon, and Nalgene tubes.

Mid-size benchtop centrifuges reaching 24,000 G.

• Applications: micro rotors 0.2 to 2.2 ml and PCR; haematocrit (PCV) rotor; fixed-angle rotors for 15 and 50 ml tubes; swing-out rotor for 0.5 to 250 ml tubes.
• Swing-out rotor BRK1001E: 4 x 250 ml buckets (1 litre), 4,000 rpm / 2,650 RCF, with adaptors for blood collection tubes, Falcon, and Nalgene/Oakridge tubes.

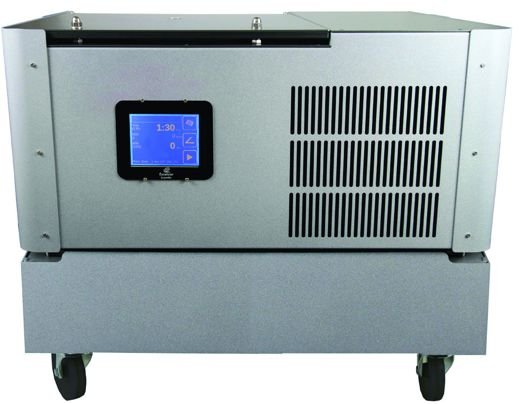

Large-capacity benchtop centrifuges with an optional trolley (XMFSE, total height 98 cm).

• Applications: micro rotors and PCR; haematocrit (PCV) rotor; large fixed-angle rotors for 15, 50, and 100 ml tubes; swing-out rotor for 0.5 to 750 ml tubes; microplate rotor for 4 standard or 2 high plates.
• Swing-out rotor BRK3000E with B2001E buckets: 4 x 500 ml, 4,000 rpm / 3,600 RCF.

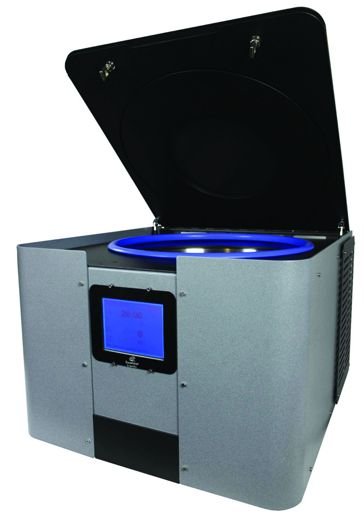

The largest benchtop models, with an optional trolley (XMFSE).

• Applications: micro rotors and PCR; haematocrit (PCV) rotor; large fixed-angle rotors for 15, 50, and 100 ml tubes; swing-out rotor for 0.5 to 750 ml tubes; microplate rotor.
• Swing-out rotor BRK3000E with B3001E buckets: 4 x 750 ml, 4,000 rpm / 3,600 RCF.

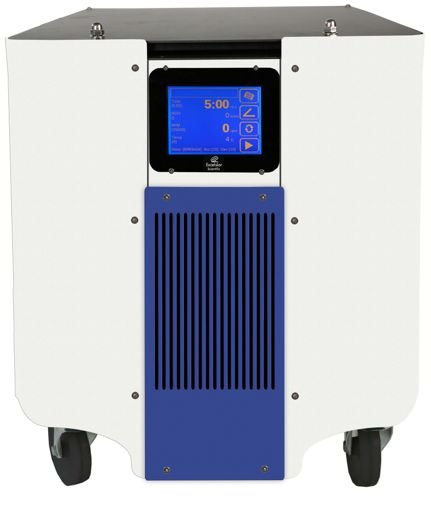

Floor-standing high-capacity centrifuges for bulk processing.

• Applications: micro rotors and PCR; haematocrit (PCV) rotor; large fixed-angle rotors for 15, 50, and 100 ml tubes, plus BRK5256E for 6 x 250 ml at 10,000 rpm / 15,650 RCF; swing-out rotor for 0.5 to 1,000 ml.
• Swing-out rotor BRK3000E with B4001E buckets: 4 x 1,000 ml, 4,000 rpm / 4,500 RCF, with B5319E sealed lids.

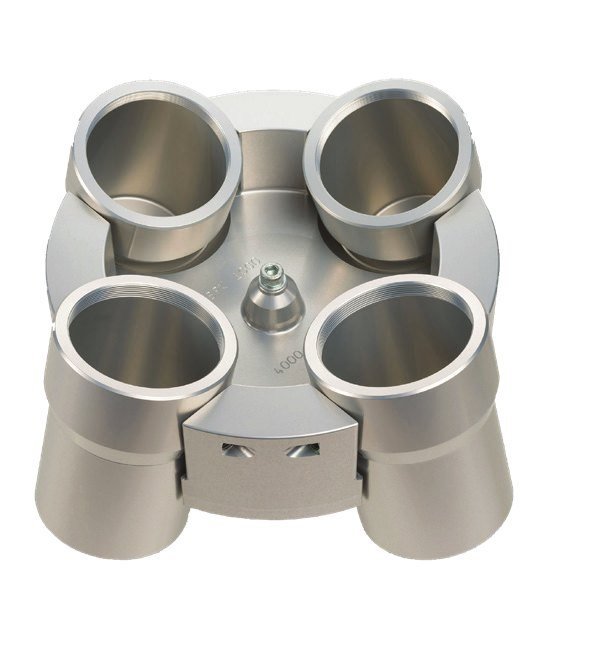

Fixed-angle rotors spin samples down fastest; swing-out rotors suit separations that need a flat pellet or layer. Rotors are autoclavable at 121°C.
