3Sector 3 of 7

Oil, Gas, Fuels & Petrochemical Validation Platforms

A robust suite of chemical reference standards, specialized capillary columns, and heavy industrial vacuum arrays designed to monitor refinery stream purity and execute high-pressure hydrocarbon analysis.

Part of Industrial Application & Technical Workflow Solutions, the strategic portfolio of Viyon Middle East L.L.C., built on the high-tier analytical and industrial brands we represent across the United Arab Emirates.

  • 38single elements in oil
  • S-12 · S-21multi-element blends
  • HT5 · HT8high-temperature columns
  • ≤ 5 · 10⁻² mbarrotary vane rough vacuum

Brands for this sector

Request a quotationDownload sector brochure (PDF)
Full product ranges
ChromatographyPetroleum ControlsVacuumOvens, Incubators & Cold Storage
Part A

Certified Hydrocarbon, Metallo-Organic & Fuel Reference Standards

Products

  • CONOSTAN® Standards: Metallo-organic element-in-oil standards, multi-element oil blends (S-12 and S-21), JOAP D-Series standards, RDE spectroscopy supplies, and ASTM fuel/sulfur calibration mixes.
  • Single Element Standards: 38 elements at 1,000 ppm and 5,000 ppm in a 20 cSt mineral oil matrix, 50 g format, with an ISO 17025 compliant Certificate of Analysis.
  • Sulfur, Biodiesel and Chlorine Standards: For XRF, ICP, and UV-F analyzers under ASTM D2622, D4294, D5453, D6334, D6443, D7039, D6751, and EN14214; chlorine in mineral oil from 10 to 50,000 ppm. Sulfur CRMs come in 9 stocked matrices from 0 to 50,000 ppm, including ASTM D7220.
  • Hydrocarbon Standards for GC: Neats, solutions and ready-to-use mixes for ASTM D2887 simulated distillation, D3606, D4815, DRO, GRO, TPH and VOC.
  • Physical & Chemical Property Standards: More than 200 CRMs for TAN, TBN, viscosity and flash point (ASTM D93, D445, D664, D2896, D7042, ISO 2719, IP 34).
  • Instrument Consumables & Fuel Microbial Kit: Stocked XRF cups and film, nebulizers, spray chambers, torches and pump tubing, plus a bacteria and fungi test kit for fuel systems that needs no complex incubation, available in the UAE.
Sulfur in crude oil
Sulfur in crude oil

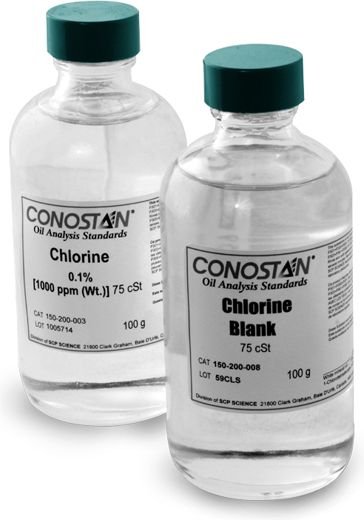

Chlorine standard and blank
Chlorine standard and blank

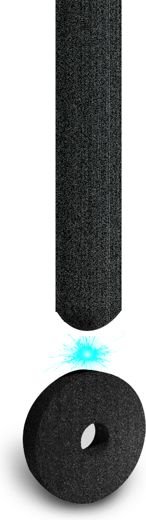

RDE graphite electrode
RDE graphite electrode

Manufacturer / SupplierCONOSTAN® / AnalytiChem (ISO 17034 · ISO/IEC 17025 · ISO 9001)

Technical data

S-12 and S-21 element sets

AgAlCrCuFeMgMnNaNiPbSiSnBBaCaCdMoPTiVZn

S-12 and S-21 S-21 only

CONOSTAN oil analysis standards
CONOSTAN oil analysis standards

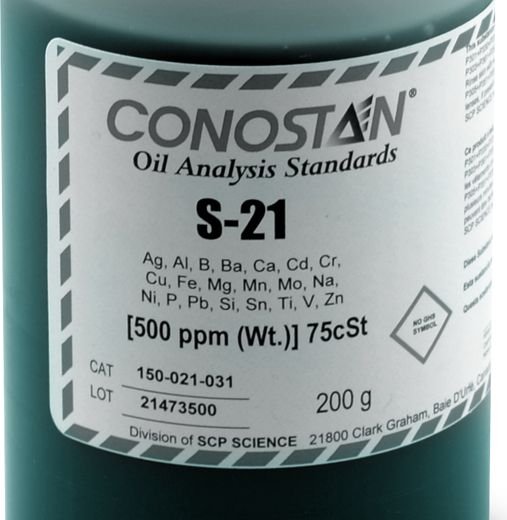

CONOSTAN S-21 multi-element blend
CONOSTAN S-21 multi-element blend
Part B

High-Temperature Hydrocarbon Chromatography & Microfluidics

Products

  • Capillary Columns & Microfluidics: High-temperature GC columns (HT5, HT8, Molsieve 5A), SilTite® metal ferrules, and SilFlow® planar microchannel devices.
  • SilTite® Leak-Free Connections: Metal ferrules that stay leak free through temperature cycling without re-tightening, plus FingerTite versions installed by hand with no tools, for Agilent, PerkinElmer, Shimadzu and Thermo Scientific injectors and MS interfaces.
  • BP BOND PLOT Columns: BP BOND U for trace H₂S, COS and mercaptans in hydrocarbon streams, BP BOND Molsieve 5A for refinery and natural gas (argon/oxygen separated at ambient temperature), and BP BOND Q for light hydrocarbons and solvents.
  • Carrier Gas Filters: Oxygen (below 50 ppb), moisture and hydrocarbon filters with indicator colour change, and Big Trap bulk purifiers (750 cm³, 250 psig) for labs feeding several GCs from one line.
  • SilFlow® Planar Microchannel Device (MCD): Deactivated stainless steel 3-port, 4-port, or Deans' Switch networks for multi-dimensional GC sample splitting.
SGE capillary GC column
SGE capillary GC column
SilFlow microchannel device
SilFlow microchannel device
BP BOND PLOT column
BP BOND PLOT column
Big Trap gas filter
Big Trap gas filter

Manufacturer / SupplierTrajan Scientific / SGE Analytics

Part C

Industrial Vacuum Processing & Refinery System Blowers

Products

  • Vacuum Pumps & Blowers: SOGEVAC, TRIVAC, VARODRY, LEYVAC, and RUVAC lines offering robust rough vacuum generation and dry screw pumping.
  • Oil-Sealed Rotary Vane Pumps (SOGEVAC & TRIVAC): SOGEVAC delivers 10 to 840 m³/h down to ≤ 5 · 10⁻² mbar with oil loss under 1 ppm; TRIVAC dual-stage pumps reach 10⁻⁴ mbar. ATEX (2014/34/EU) and O₂-compatible versions are available.
  • VARODRY and LEYVAC Dry Screw Pumps: Dry screw pumps down to ≤ 1 · 10⁻² mbar with no process oil migration: air-cooled VARODRY (65 to 200 m³/h) and hermetically sealed LEYVAC (80 to 160 m³/h) for hazardous gases.
SOGEVAC rotary vane pump
SOGEVAC rotary vane pump
TRIVAC dual-stage pump
TRIVAC dual-stage pump
VARODRY dry screw pump
VARODRY dry screw pump
LEYVAC dry screw pump
LEYVAC dry screw pump
RUVAC roots pump
RUVAC roots pump

Manufacturer / SupplierLeybold Vacuum Components

Part D

Calibration Standard Storage

Laboratory refrigerators for keeping GC, HPLC, and AAS calibration standards and reagents at a controlled temperature.

Manufacturer / SupplierExcelsior Scientific Ltd (UK) · thermostatic laboratory equipment

Thermostatic equipment

CHL Laboratory Refrigerators

Single or double chamber laboratory refrigerators from 0°C to +15°C, with -10°C to +15°C available as an option. Forced air convection, defrosting, and microprocessor time and temperature control.

  • Applications: storing water and sewage samples and piezometer leachate, AAS, GC, and HPLC calibration standards, reagents, and chemicals.
  • Standard equipment: solid door (glass optional), RS 232, wire shelves, and a test certificate at +4°C.
CHL laboratory refrigerator
CHL laboratory refrigerator
ModelCHL 1CHL 2CHL 3CHL 4CHL 5CHL 6CHL 500CHL 700CHL 1200CHL 1450
Chamber capacity (L)7015020025030040050062513651460
Working capacity (L)5512216320324332438645012291307
Nominal power (W)160170170330330330400400550550
Weight (kg)325459697590105115185200

Thermostatic equipment

Controllers, Software & Qualification

Every Excelsior thermostatic unit uses a PID microprocessor controller. All products can be supplied with a calibration certificate from an accredited measurement laboratory and with IQ, OQ, and PQ qualification.

  • STD controller: LCD graphic display, six-segment profiles, 3 user programs, alarms, power failure recovery, and memory for 2,046 data records.
  • TOP+ controller: 5.7" colour touch screen, up to 100 program segments, 20 user programs, user accounts with login, password-protected settings, 4,100 records per user, USB export, and remote control over Ethernet or the internet.
  • EasyLab software: EasyLab Basic downloads stored data to a PC free of charge; EasyLab Professional adds continuous logging, charts, reports, and TOP+ programming.
STD microprocessor controller
STD microprocessor controller
TOP+ colour touch screen
TOP+ colour touch screen
EasyLab software screen
EasyLab software screen
